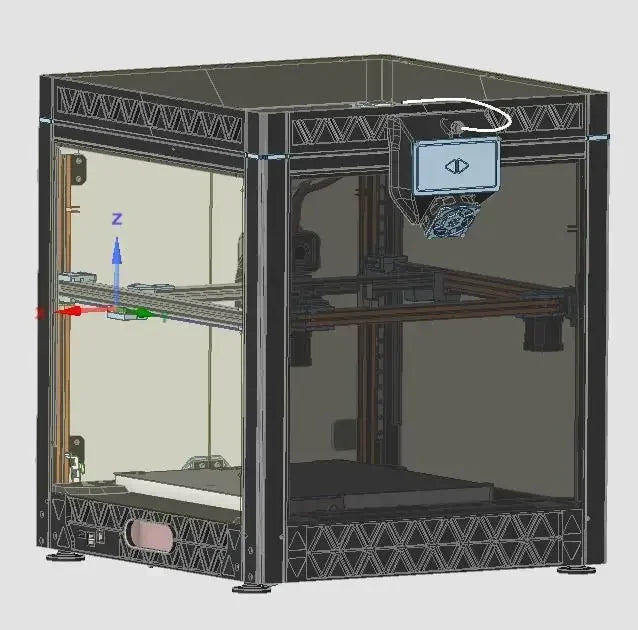

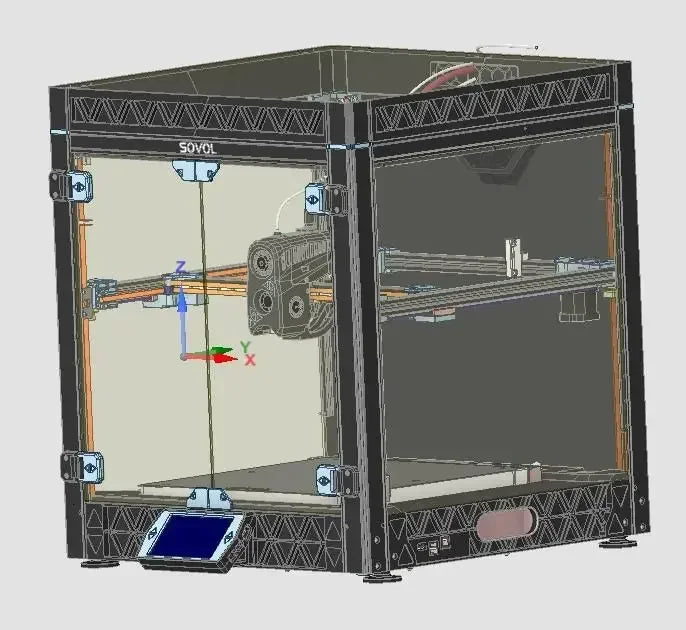

Sovol SV08 Full Enclosure kit single layer Version Design By Nadir
Sovol SV08 Full Enclosure kit single layer Version Design By Nadir
Description
SPECIFICATIONS
Brand Name: Funssor
High-concerned chemical: None
Item Type: Hardware Parts / Machine Parts
Model Number: Sovol SV08 Full Enclosure Kit
Origin: Mainland China
Below is the assembly video shared by Nadir.Please take a reference before assembing.
https://www.youtube.com/watch?v=88_2HGAqAcY
Thanks for great work from Nadir.The kit is Produced in collaboration with Nadir.
More information about the project.Please kindly check below link.
Sovol SV08 Panels for the Enclosure by Nadir | Download free STL model | Printables.com
Full Enclosure Includes

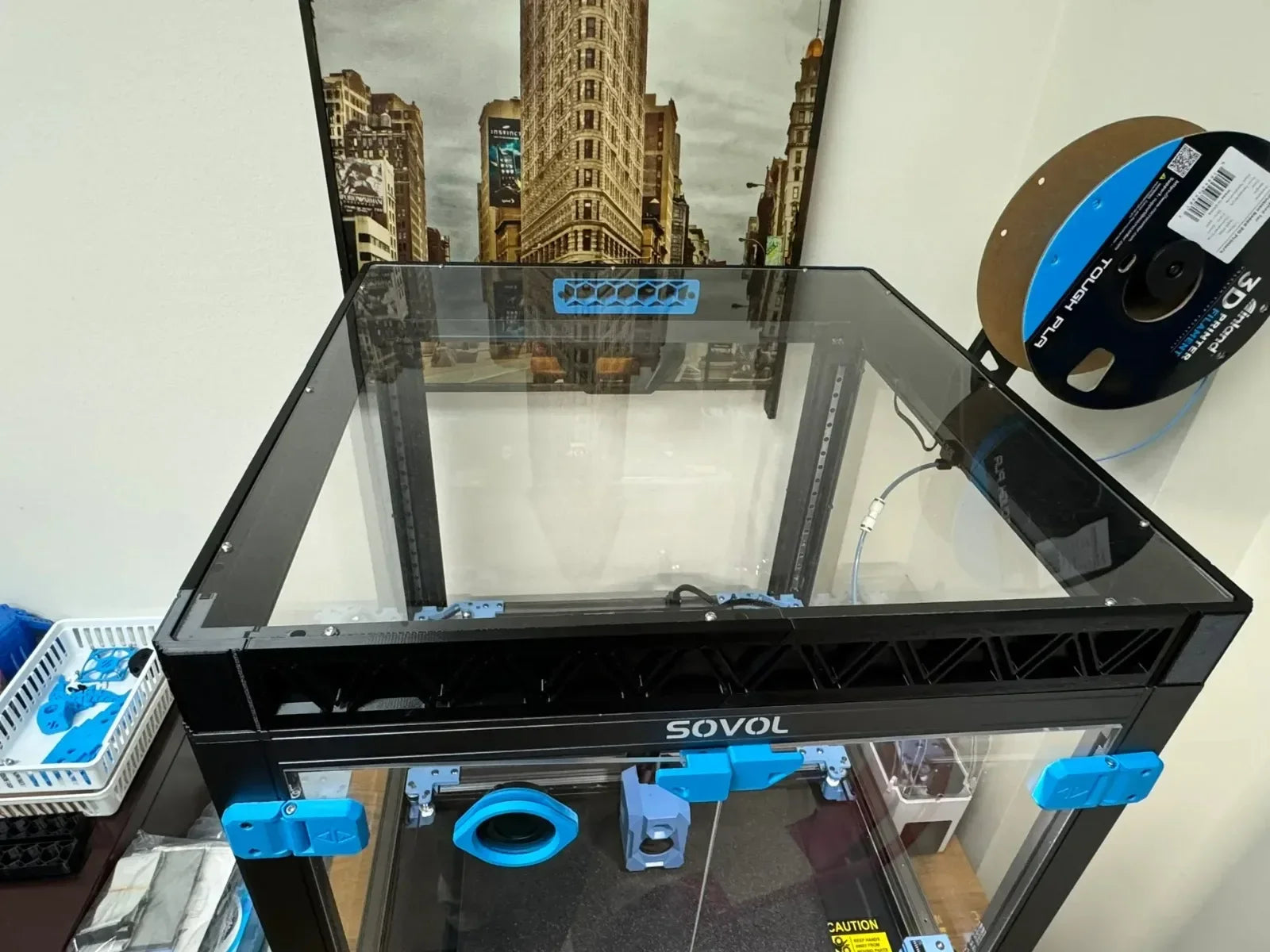

Top Hat with or without the Exhaust
Panels
Doors

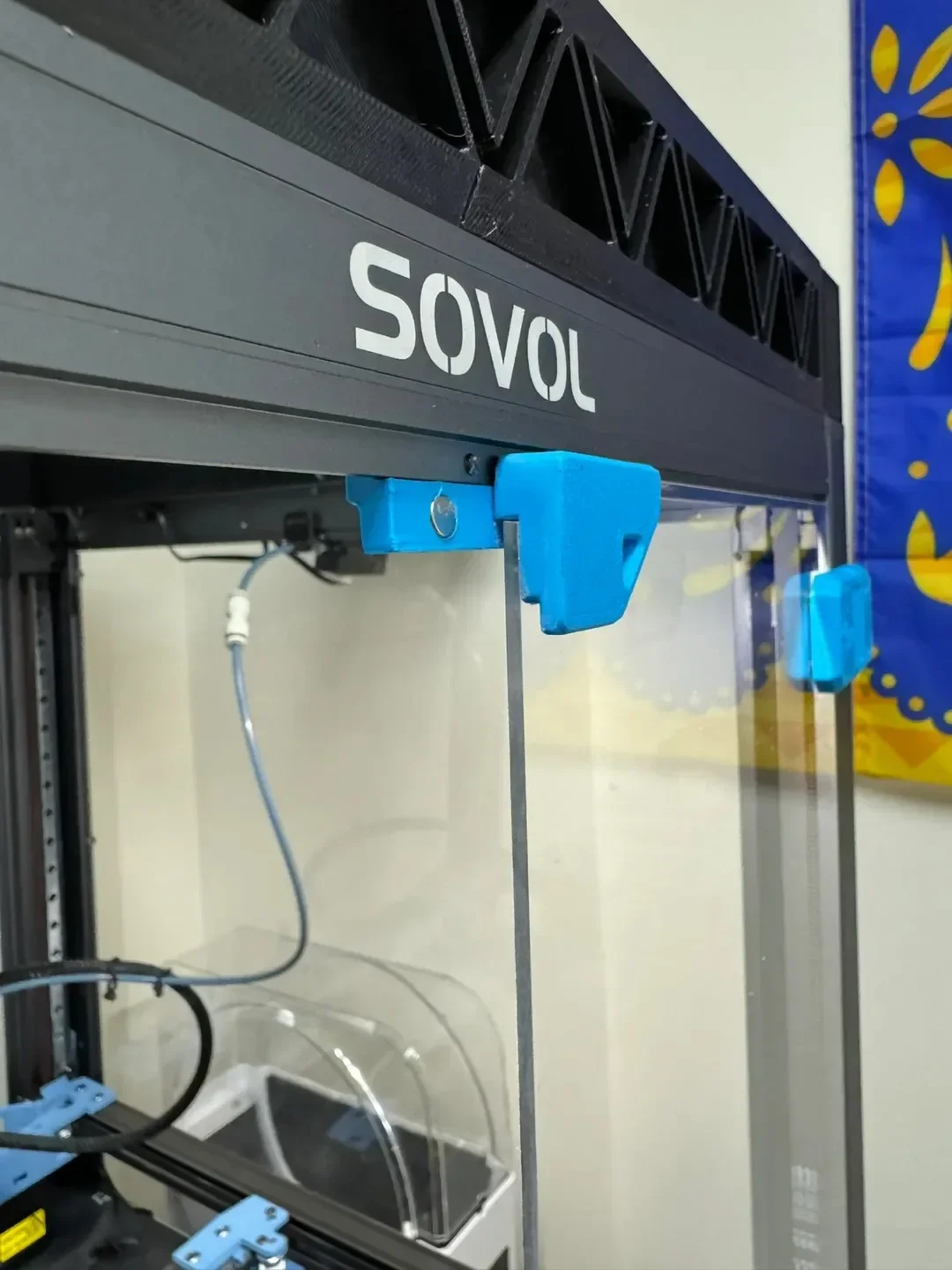

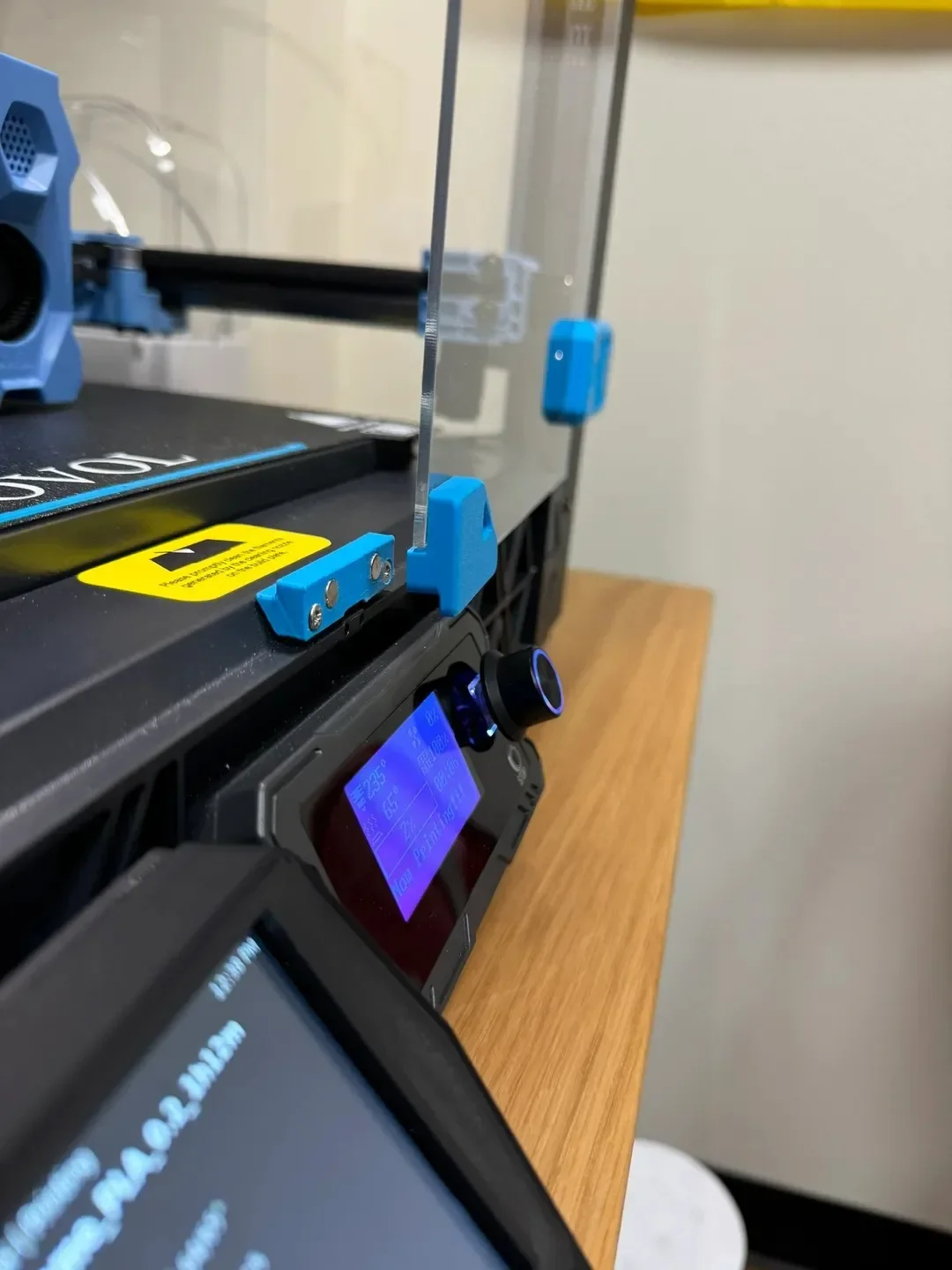

Hinges for the doors
Handles for the doors
Screw Nuts Pack
BOM:

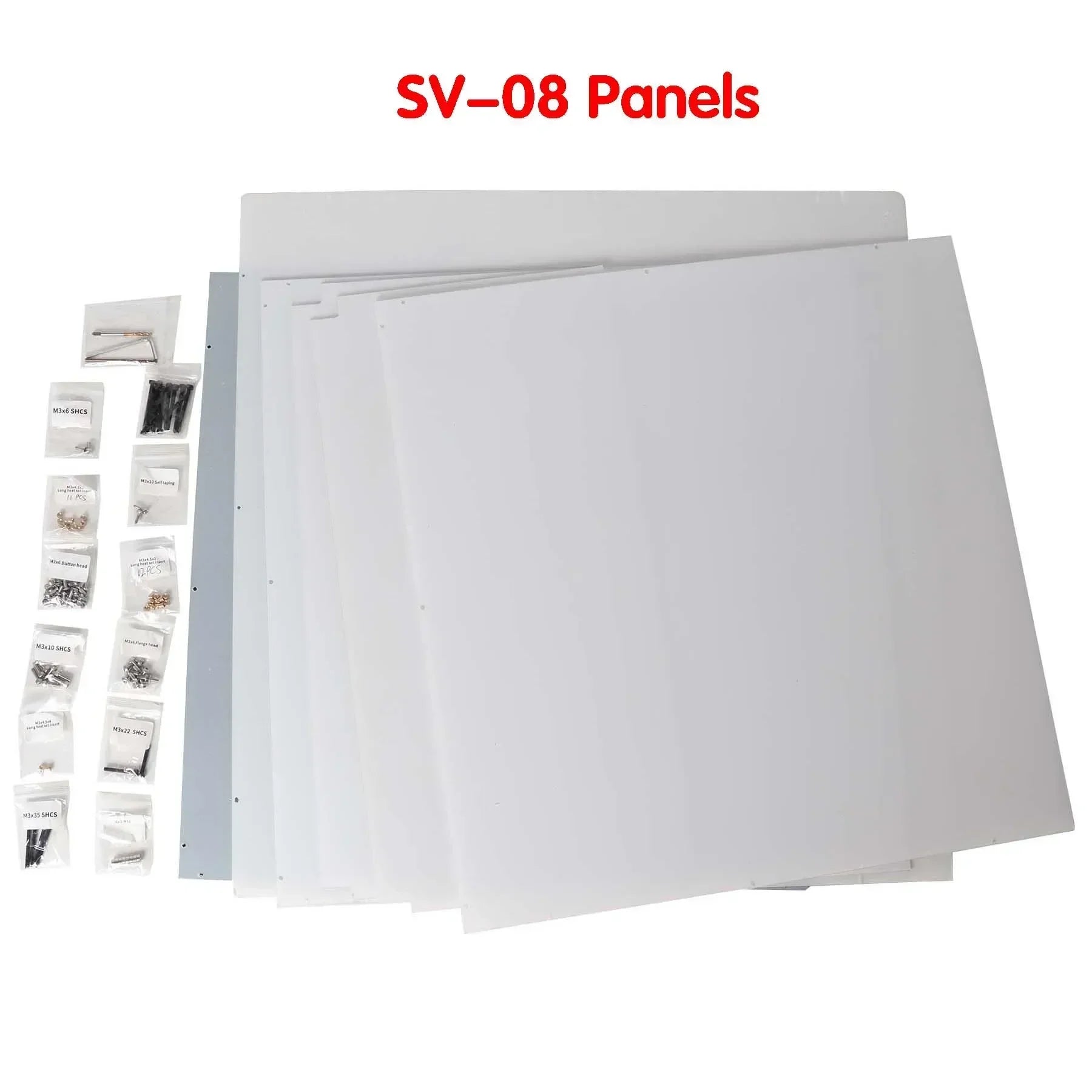

Panels
39xM3x6 Button Head for the panels (sides back and top)
Doors
4 x M3x35mm SHCS
8 x M3x10mm SHCS
12 x M3x6mm Flange head screw
2 x M3x10mm Self taping
2 x M3x6mm SHCS
12 x M3X3mm long heat set insert
8 x 6x3 Neodymium Magnets N52
Top Hat
Heat set insets
M3x3mm long 11pcs(to secure the top panel to the top hat)
M3X4mm long 2pcs (to mount the exhaust filter to thetop hat)
12x M3x35mm SHCS(to secure the top hat in to the frame)
2xM3x22mmSHCS(to secure the exhaust filter to the top hat)
Gift:
2 and 2.5 Alen wrench
2.5 drill bit (to make the additional holes in the frame for the door hinges)
M3 tap (to tap the holes for the door hinges)
